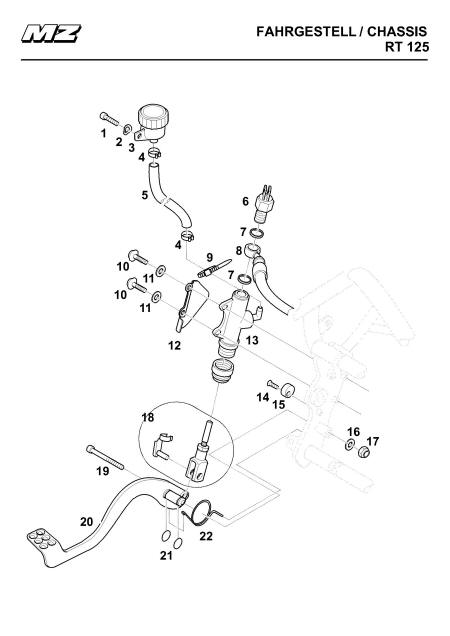

125 RT Rear Master Cyinder

# Part Number Description Price Cart
1. 9013360000 M6 ALLEN SCREW
2. 9013073000 SPRING WASHER
3. 9016111000 FLUID RESEVOIR
4. 9013483000 CLAMP
5. 3925018005 HOSE
6. 4125045005 BRAKE LIGHT SWITCH
7. 9013199000 SEALING RING
8. 3925005000 BRAKE HOSE
10. 9014379655 M6X25 BUTTON HEAD SCREW
11. 9436013655 WASHER
12. 3925019615 HEEL PLATE
13. 9014416000 REAR MASTER CYLINDER
14. 9016233000 M6X25 COUNTER SUNK SCREW
15. 3925013000 ECCENTER
16. 9436062000 WASHER
17. 9430098000 M6 HEX NUT
18. 9016456000 PRESSURE ROD
19. 9412047000 M6X50 ALLEN SCREW
20. 3925007600 BRAKE PEDAL
21. 9016232000 O-RING
22. 3925011000 SPRING
   9022020000 GASKET SET REAR BRAKE CYLINDER
