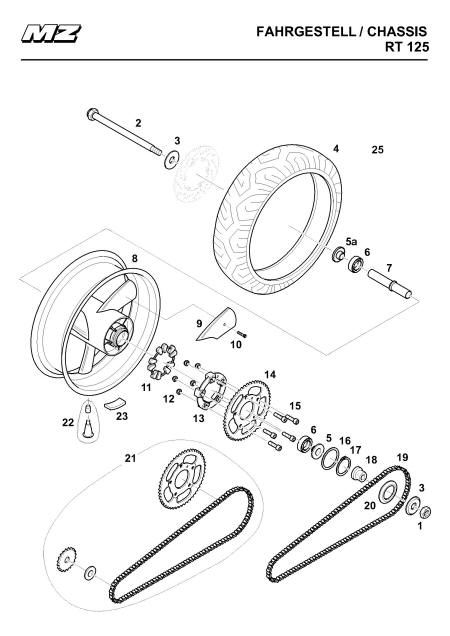

125 RT Rear Wheel

# Part Number Description Price Cart
1. 9016613000 M16 HEX NUT
2. 9016034000 AXLE
3. 3425008000 WASHER FOR AXLE
4. 130/70H17 REAR TYRE, SEE LOCAL DEALER
5. 9016028000 REDUCING SLEEVE
6. 9013188000 6204-2RS BEARING
7. 9016025000 SPACER
8. 9016023000 REAR WHEEL C/W BEARINGS AND SLEEVES
9. 9016400000 SPOKE COVER
10. 9016401000 SCREW FOR SPOKE COVER
11. 9016030000 DOG RUBBER
12. 9430098000 HEXAGON NUT
13. 9016029000 DOG
14. 50.15046.49 DISHED SPROCKET 49T
15. 9014415000 ALLEN SCREW
16. 9016031000 WASHER THICKNESS 1mm
17. 9016032000 CIRCLIP
18. 3925016000 DISTANCE SLEEVE LEFT
19. 428x126HD 428x126 HEAVY DUTY CHAIN
20. 3925039000 COVER
21. 50.15019.16 16 TOOTH FRONT SPROCKET
  50.15046.49 49 TOOTH DISHED REAR SPROCKET
  3746032000 LOCKING WASHER
  428x126HD HEAVY DUTY CHAIN
