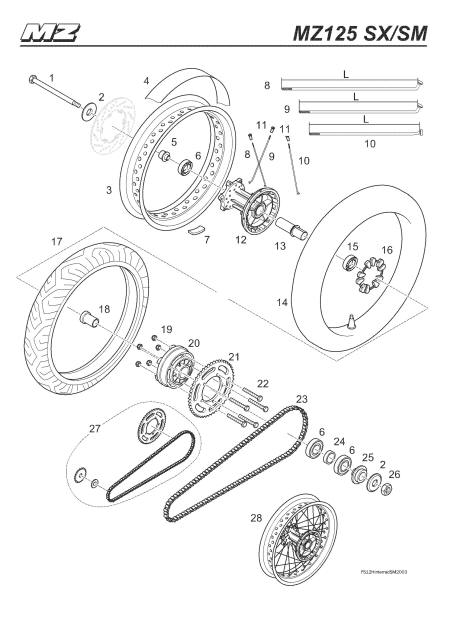

125 SM Rear Wheel

# Part Number Description Price Cart
1 9016034000 AXLE
2 3425008000 WASHER FOR AXLE
3 4125010000 WHEEL RIM
4 9016318000 RIM TAPE
5 9016158000 SLEEVE
6 9016280000 BEARING
7   WEIGHT
8 4125041000 SPOKE 176mm
9 4125042000 SPOKE 173mm
10 4125043000 SPOKE 161.5mm
11 9016394000 NIPPLE
12 9016169000 HUB ASSY
13 9016163000 SPACER
14   INNER TUBE
15 9013177000 6203 BEARING
16 9016164000 CUSH DRIVE RUBBER
17   TYRE 130/70-17
18 9016155000 REDUCING SLEEVE
19 9430099000 HEXAGON NUT
20 9016153000 CUSH DRIVE
21 50.15051.49 49 TOOTH SPROCKET
22 9406241000 HEXAGON SCREW
23 428X132HD DRIVE CHAIN 428x132
24 9016170000 SPACER
25 9016154000 REDUCING SLEEVE
26 9016613000 HEX NUT
27 50.15019.16 16 TOOTH SPROCKET
  50.15019.49 49 TOOTH SPROCKET
  3746032000 LOCK WASHER
  428X132HD HEAVY DUTY DRIVE CHAIN
28 4125103005 REAR WHEEL ASSY
