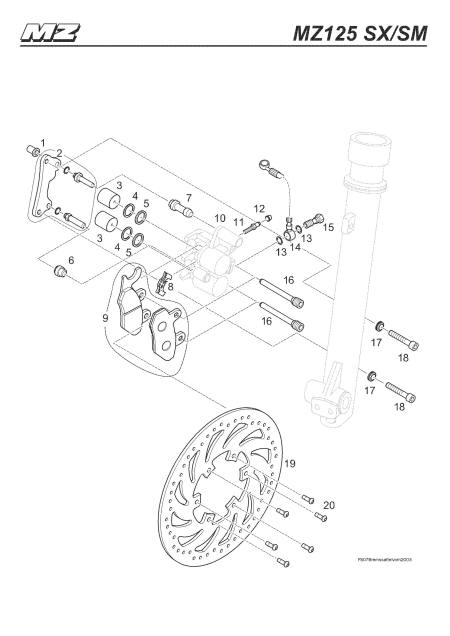

125 SX/SM Front Caliper

# Part Number Description Price Cart
  9016167000 CALIPER COMPLETE
1 9016055000 UNION NUT
2 9016288000 ADAPTER PLATE
3 9023251000 BRAKE PISTON
4 9023252000 OUTER SEALING RING
5 9023253000 INNER SEALING RING
6 9016121000 DUST COVER SMALL
7 9016122000 DUST COVER LARGE
8 9016123000 CLAMPING COLLAR
9 FA228 BRAKE PADS
10   SEE TOP OF PAGE
11 9016120000 BLEEDER SCREW
12 9016059000 DUST CAP
13 9013199000 SEALING RING
14 4123010000 BRAKE HOSE
15 9013154000 HOLLOW SCREW
16 9016058000 BRAKE PIN
17 9016255000 LOCK WASHER
18 9014931000 ALLEN SCREW
19 9016149000 280mm BRAKE DISC
20 9016251000 BUTTON HEAD SCREW
