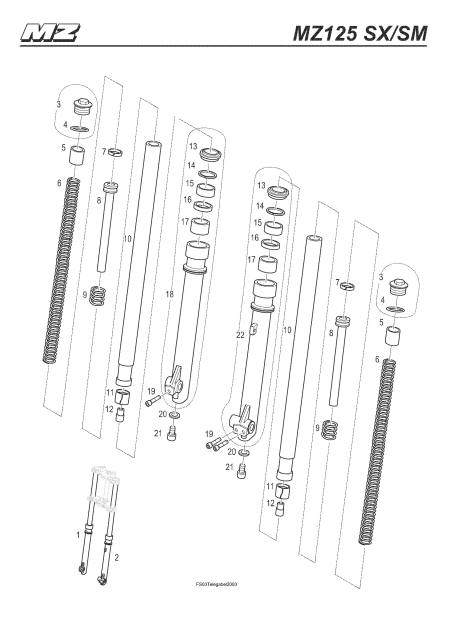

125 SX/SM Front Forks

# Part Number Description Price Cart
1 9016179000 SLIDER ASSY RIGHT
2 9016178000 SLIDER ASSY LEFT
3 9023211000 PLUG KIT
4 9023210000 O-RING
5 9023212000 PRE LOAD SLEEVE
6 9023213000 SPRING
7 9023214000 PISTON RING
8 9023215000 PISTON ROD
9 9022108000 REBOUND SPRING
10 9023216000 STANCHION TUBE
11 9023217000 LOWER BUSH
12 9022112000 BUFFER
13 9023218000 DUST SEAL
14 9023219000 STOP RING
15 9023221000 CAP
16 9023220000 OIL SEAL 40x52x10/10.5
17 9023222000 UPPER PILOT BOSS
18 9023230000 RIGHT SLIDER UNIT
19 9023223000 SCREW
20 9023225000 WASHER
21 9023224000 SCREW
22 9023231000 LEFT SLIDER UNIT
