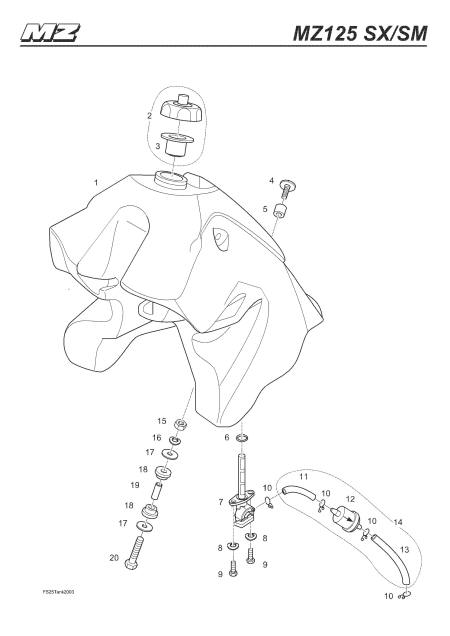

125 SX/SM Fuel Tank

# Part Number Description Price Cart
1 4127002830 FUEL TANK
2 9016183000 FUEL CAP
3 9023207000 GASKET
4 9016278000 PAN HEAD SCREW
5 3932025000 DISTANCE SLEEVE
6 9013065000 SEALING WASHER
7 3627035000 FUEL TAP
8 9438304000 SPRING WASHER
9 9016263000 SCREW
10 3021880000 CLAMP
11 9013601000 FUEL TUBE 40mm
12 9016306000 FUEL FILTER
13 9013601000 FUEL PIPE 132mm
14 3927025005 SET FUEL FILTER
15 9430694000 HEX NUT
16 9438386000 SPRING WASHER
17 9436142000 WASHER
18 3627016000 RUBBER BUSH
19 3627017000 DISTANCE SLEEVE
20 9014480000 HEX SCREW
