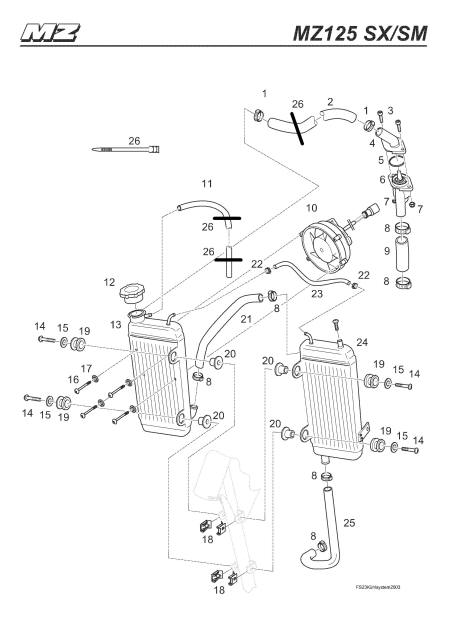

125 SX/SM Radiators

# Part Number Description Price Cart
1 9014385000 HOSE CLIP
2 4120014000 UPPER WATER TUBE
3 9411641000 ALLEN SCREW
4 9013074000 THERMOSTAT
5 9013336000 O-RING
6 3420012000 THERMOSTAT BOTTOM PART
7 9430242000 HEXAGON NUT
8 9014386000 HOSE CLIP
9 3920012000 REAR WATER TUBE
10 9016175000 FAN
11 3920013000 AIR VENT HOSE
12 9023206000 RADIATOR CAP
13 9016176000 R/H RADIATOR
14 9014379655 SCREW
15 9013305000 WASHER
16 9023241000 SCREW
17 9023242000 WASHER
18 9013422000 CLIP NUT
19 9013068000 RUBBER FUNNEL
20 9013067000 BUSH
21 4120015000 CONNECTING HOSE, RADIATOR
22 9013438000 CLIP
23 3620004000 CONNECTING HOSE, RADIATOR
24 9016177000 L/H RADIATOR
25 4120010000 BOTTOM WATER TUBE
26 9016242000 CABLE STRIP
