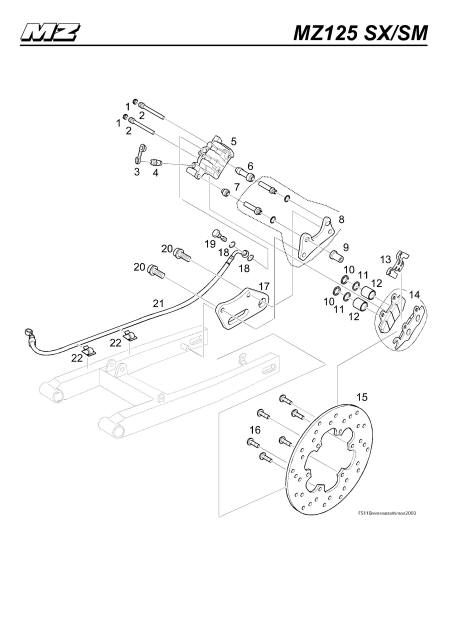

125 SX/SM Rear Caliper

# Part Number Description Price Cart
  9016005000 BRAKE CALIPER COMPLETE
1 9016060000 COVER SCREW
2 9016058000 FASTENING BOLT
3 9016059000 DUST CAP
4 9016120000 BLEEDER SCREW
5   NO SPARE PART
6 9016122000 DUST COVER LARGE
7 9016121000 DUST COVER SMALL
8 9016124000 ADAPTER PLATE
9 9016055000 UNION NUT
10 9016050000 INNER SEAL RING
11 9016051000 OUTER SEALING RING
12 9016119000 BRAKE PISTON
13 9016123000 CLAMPING COLLAR
14 FA197 BRAKE PAD SET
15 9016283000 220mm REAR BRAKE DISC
16 9016251000 DISC BOLT
17 3925015000 ADAPTER PLATE
18 9013199000 SEALING RING
19 9013154000 HOLLOW SCREW
20 9016234000 LOCKING SCREW
21 3925005000 BRAKE HOSE
22 9016293005 HOSE CLAMP
