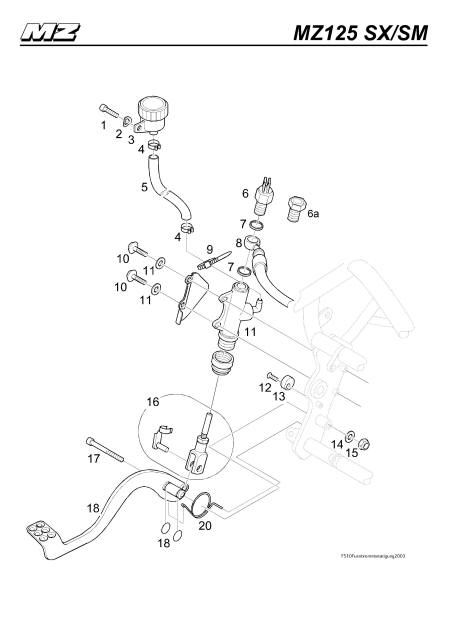

125 SX/SM Rear Master Cylinder
# Part Number Description Price Cart
1 901336000 ALLEN SCREW
2 9013073000 SPRING WASHER
3 9016111000 RESERVOIR
4 9013438000 CLAMP
5 3925018005 HOSE
6 4125045005 BRAKE LIGHT SWITCH
6a 9013154000 HOLLOW SCREW
7 9013199000 SEALING RING
8 3925009000 BRAKE HOSE
9   CABLE STRAP
10 9014379000 BUTTON HEAD SCREW
11 9436013655 WASHER
11 9014416000 REAR MASTER CYLINDER
12 9016233000 M6 SCREW
13 3925013000 ECCENTER
14 9436062000 WASHER
15 9430098000 M6 NUT
16 9013048000 PRESSURE ROD
17 9412047000 M6x50 ALLEN SCREW
18 3925007600 FOOT LEVER
19 9016232000 O-RING
20 3925011000 SPRING
  3925019615 HEAL PROTECTOR
  9022020000 GASKET SET MASTER CYLINDER
