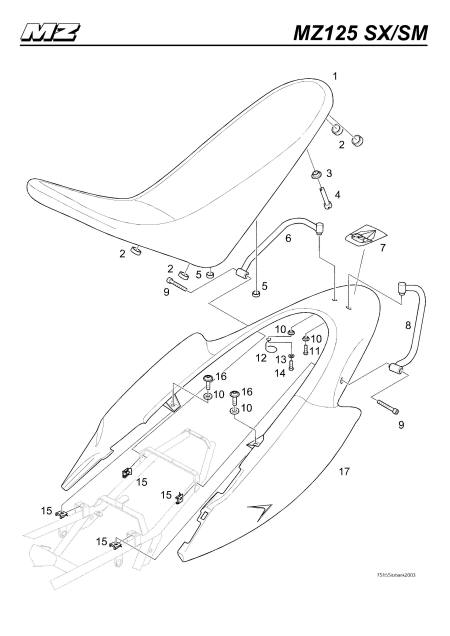

125 SX/SM Seat

# Part Number Description Price Cart
1 4131005000 SEAT
2 9016144000 RUBBER BUNG
3 3631023590 FLANGE BUSH
4 9014704000 BOLT SPECIAL
5 9016145000 RUBBER PLUG
6 4131016695 BRACKET
7 3927014000 MZ BADGE
8 4131015695 BRACKET
9 9016266000 ALLEN SCREW
10 4132025000 FLANGE BUSH
11 9013304000 HEX SCREW
12 3622019000 GUIDE
13 9436013655 WASHER
14 9404248000 HEX SCREW
15 9013260000 PLATE NUT
16 9014367655 FLANGE BUTTON HEAD SCREW
17 4130007C10 REAR COVER UNPAINTED
17 4130007C20 REAR COVER UNPAINTED
17 4130007840 REAR COVER UNPAINTED
17 4130006475 REAR COVER PAINTED
17 4130006C35 REAR COVER PAINTED
17 4130006195 REAR COVER PAINTED
17 4130006C55 REAR COVER PAINTED
