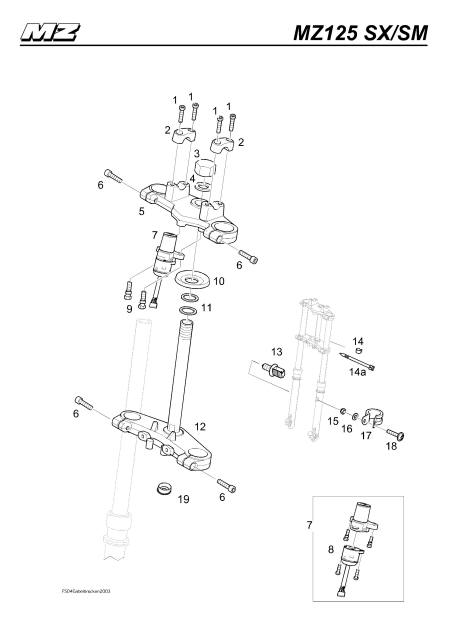

125 SX/SM Steering

# Part Number Description Price Cart
1 9013436000 ALLEN SCREW
2 9016063610 UPPER HANDLE BAR CLAMP
3 3422117000 NUT
4 3422118000 WASHER
5 4122006615 UPPER FORK BRIDGE
6 9014415000 ALLEN SCREW
7 9016065000 IGNITION LOCK
8 9023005000 LOWER IGN SWITCH
9 9014306000 SAFETY SCREW
10 3422005000 CAP
11 9013457000 SHIM RING
12 4122007005 BOTTOM FORK BRIDGE
13 9016267000 GUIDE
14 9016323000 STRAP
15 9013455000 HEX NUT
16 9435785000 WASHER
17 9014316000 CLAMP
18 9016327000 BUTTON HEAD SCREW
19 9016390000 PLUG
  8050617000 KEY BLANK
