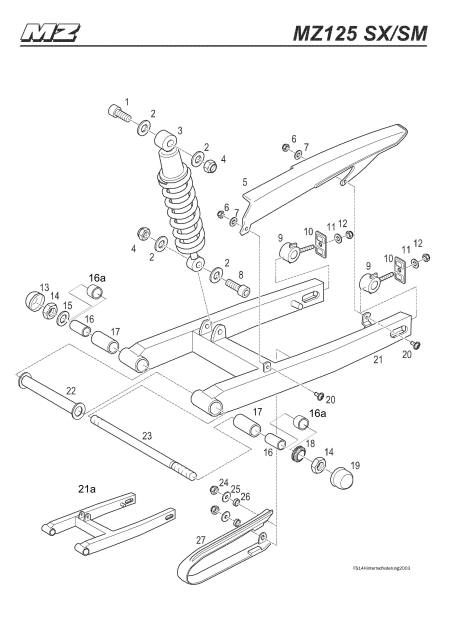

Part Number |
Description |
Price |
Cart |
| 1. |
9411633000 |
ALLEN
SCREW |
|
|
| 2. |
9436183655 |
WASHER |
|
|
| 3. |
9016146000 |
SPRING STRUT |
|
|
| |
9016136000 |
BEARING,
SPRING STRUT BOTTOM |
|
|
| 4. |
9430373655 |
HEXAGON
NUT |
|
|
| 5. |
3930015005 |
CHAIN
PROTECTOR |
|
|
| 6. |
9014038000 |
HEXAGON NUT |
|
|
| 7. |
9436013655 |
WASHER |
|
|
| 8. |
9411616000 |
ALLEN SCREW |
|
|
| 9. |
3925020590 |
CHAIN
ADJUSTER |
|
|
| 10. |
3925023590 |
COVER
PLATE |
|
|
| 11. |
9444585000 |
WASHER |
|
|
| 12. |
9430104000 |
HEXAGON
NUT |
|
|
| 13. |
9014908000 |
DUST
COVER |
|
|
| 14. |
9431603000 |
HEXAGON
NUT |
|
|
| 15. |
0018156000 |
WASHER |
|
|
| 16. |
3926023590 |
BEARING BUSH
FOR SWING FORK |
|
|
|
16a. |
2221362000 |
SLEEVE,
PLASTIC |
|
|
| 17. |
1321225000 |
RUBBER
BUSH |
|
|
| 18. |
9016230000 |
LOCK
WASHER NORD-LOCK |
|
|
| 19. |
9014909000 |
DUST
COVER |
|
|
| 20. |
9014367655 |
COUNTERSUNK HEAD SCREW |
|
|
| 21. |
4126002695 |
SWING
FORK ASSY, BLACK |
|
|
|
21a. |
4126030505 |
SWING
FORK ASSY, BLACK |
|
|
| 22. |
3926026595 |
SPACER |
|
|
| 23. |
3926016590 |
SWING
BEARING BOLT |
|
|
| 24. |
9500047000 |
PLASTIC
NUT |
|
|
| 25. |
9013344000 |
WASHER |
|
|
| 26. |
3430010000 |
SPACER |
|
|
| 27. |
3926035000 |
CHAIN AND
SWING ARM PROTECTOR |
|
|
|
