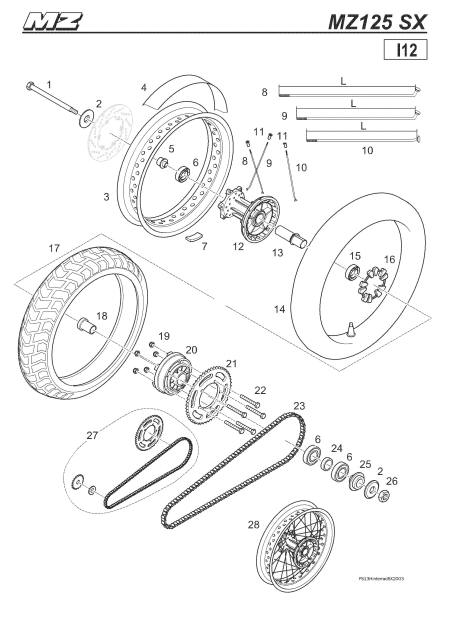

125 SX Rear Wheel

# Part Number Description Price Cart
1 9016034000 AXLE
2 3425008000 WASHER FOR AXLE
3 9014942000 WHEEL RIM
4 9016320000 RIM TAPE
5 9016158000 SLEEVE
6 9016280000 6204 BEARING
7 9014261000 WEIGHT
8 4125022000 187mm SPOKE
9 4125021000 184mm SPOKE
10 4125020000 172mm SPOKE
11 9371295000 NIPPLE
12 9016169000 HUB ASSY
13 9016163000 SPACER
14   INNER TUBE 120/80-18
15 9013177000 6203 BEARING
16 9016164000 CUSH RUBBER
17   120/80-18 TYRE
18 9016155000 REDUCING SLEEVE
19 9430099000 HEXAGON NUT
20 9016153000 CUSH DRIVE
21 50.15051.52 52 TEETH SPROCKET
22 9462410000 HEXAGON SCREW
23 428X134HD HEAVY DUTY CHAIN
24 9016170000 SPACER
25 9016154000 REDUCING SLEEVE
26 9016613000 HEXAGON NUT
27 50.15019.16 16 TEETH SPROCKET
  50.15051.52 52 TEETH SPROCKET
  3746032000 LOCK WASHER
  428X136HD DRIVE CHAIN
28 4125003005 REAR WHEEL ASSY
