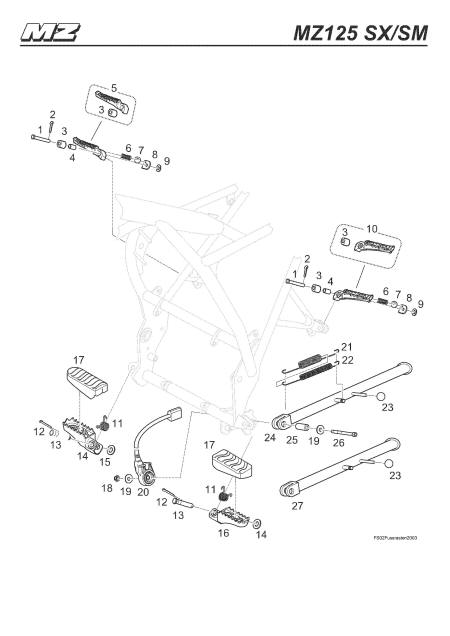

125 SX/SM Step

# Part Number Description Price Cart
1. 9013126000 CLEVIS PIN
2. 9013464000 SPLINT PIN
3. 931029000 RUBBER RING
  9438386000 SPRING WASHER
4. 9013116000 SLEEVE
5. 3931037005 FOOTREST SET, REAR, RIGHT
6. 9013124000 PRESSURE SPRING
7. 9400902000 BALL
8. 3931030590 LOCKING DISK
9. 9436013000 WASHER
10. 3931036005 FOOTREST SET, REAR, LEFT
11. 3925034000 SPRING
12. 9443158000 SPLINT PIN
13. 9016238000 BOLT
14. 3925043000 FOOTREST RIGHT
15. 9013317000 WASHER
16. 3925042000 FOOTREST LEFT
17. 3925044000 FOOTREST RUBBER
18. 9430098000 HEXAGON NUT
19. 9013305000 WASHER
20. 9016395000 SWITCH FOR SIDE STAND
21. 3021208000 OUTER RETURN SPRING
22. 3021196000 INNER RETURN SPRING
     9016392000 RUBBER STRIP FOR SIDE STAND
23. 3621172000 RUBBER BALL
24. 4121071560 SIDE STAND, CHROMIUM
24. 4121145560 SIDE STAND, DIRT BIKE
25. 4121076000 SLEEVE FOR SIDE STAND
26. 9412047000 ALLEN SCREW
26. 9411962000 ALLEN SCREW
27. 4121074560 SIDE STAND
